Steel Plate Induction Quenching Heat Treatment Furnace: Common Faults, Causes and Solutions FAQ

Steel Plate Induction Quenching Heat Treatment Furnace: Common Faults, Causes and Solutions FAQ

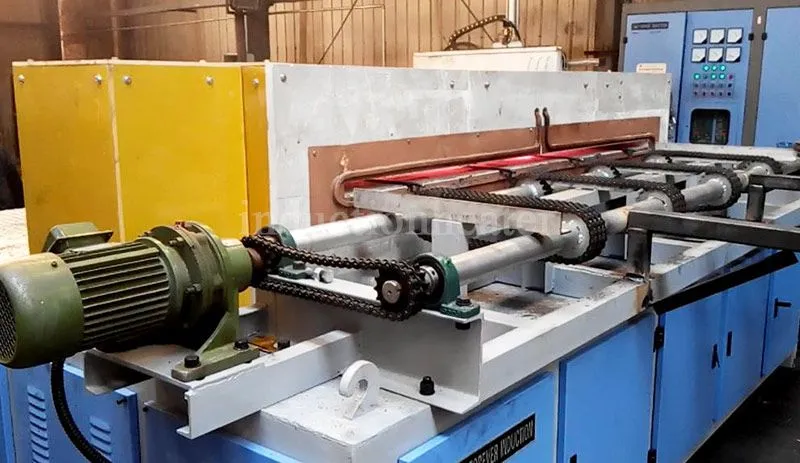

Steel plate induction quenching heat treatment furnace is the core intelligent equipment for high-precision heat treatment of wear-resistant steel plates, stainless steel plates and alloy steel plates. Compared with traditional furnace heating, it features fast heating speed, uniform temperature, low energy consumption and no pollution, which is widely used in metallurgy, machinery, mining and engineering machinery industries. In long-term continuous operation, users may encounter occasional unstable heating, quenching quality deviation and equipment minor failures. Forever Mechanical summarizes practical common problems and targeted solutions based on overseas project experience and after-sales service cases to help users quickly troubleshoot and ensure stable production.

Q1: Unstable heating temperature, uneven hardness of quenched steel plate

This is the most frequent problem in induction quenching production. The main causes include unreasonable induction coil spacing, inconsistent steel plate feeding speed, surface oxide scale adhesion on the coil, and fluctuation of grid voltage. Uneven heating will lead to local soft spots, inconsistent hardness and unqualified product quality. Solution: Regularly clean the surface of the induction coil to remove oxide scale and dust; calibrate the coil spacing according to the steel plate thickness and width to ensure uniform magnetic field penetration; stabilize the feeding transmission speed through PLC parameter debugging; install a voltage stabilizer for the equipment to avoid temperature deviation caused by voltage fluctuation.

Q2: Equipment overheating, frequent over-temperature alarm shutdown

Long-time continuous operation, blocked cooling water circulation and aging of cooling fans will cause the induction power supply and coil to overheat and trigger automatic protection shutdown. Severe overheating will accelerate the aging of electrical components and shorten the equipment service life. Solution: Check the cooling water pipeline regularly to clean blockages and ensure smooth water circulation; replace aging cooling fans and check heat dissipation vents for dust accumulation; formulate a reasonable operation cycle to avoid long-term overload operation, and properly adjust equipment operating parameters according to ambient temperature in high-temperature seasons.

Q3: Steel plate surface quenching cracks and deformation

Excessively high heating temperature, too fast quenching cooling speed and unreasonable temperature holding time are the main incentives. Thin steel plates are more prone to thermal deformation and cracking during heat treatment. Solution: Optimize the heating temperature and cooling water pressure parameters according to the steel plate material and thickness; add a short heat preservation process after heating to reduce internal thermal stress; adjust the spray water flow uniformity to avoid local rapid cooling, effectively control plate deformation and quenching cracks.

Q4: Induction furnace no heating or weak heating power

The failure is mostly caused by loose circuit wiring, damaged IGBT power module and coil short circuit or open circuit. It will directly lead to production shutdown and low processing efficiency. Solution: Cut off the power for safety inspection, fasten loose wiring terminals; detect and replace damaged power modules in time; check the induction coil for damage and short circuit, repair or replace accessories, and complete equipment debugging before restarting production.

Forever Mechanical’s steel plate induction quenching heat treatment furnace adopts upgraded closed-loop temperature control system and high-efficiency heat dissipation structure. We provide standardized operation guidelines and full after-sales technical support for global users. Daily standardized maintenance and parameter debugging can effectively reduce failure rate, stabilize quenching quality and maximize equipment operation efficiency for heat treatment production lines.
