Process Innovation and Upgrade of Forever Electromechanical Steel Sheet Induction Heating Furnace

In the modern steel processing industry, heating quality, energy consumption efficiency and intelligent production level directly determine the finished product quality and core competitiveness of steel sheet processing. Traditional steel sheet heating equipment represented by gas furnaces and single-coil induction furnaces has long been plagued by uneven heating, high energy consumption, serious oxidation and low automation. To solve the industry pain points, Forever Electromechanical has completed a comprehensive technological innovation and iterative upgrade of steel sheet induction heating furnaces, realizing qualitative leaps in heating uniformity, energy-saving efficiency, intelligent control and production adaptability, bringing high-efficiency, green and low-carbon heating solutions for medium and heavy steel plates, special-shaped steel sheets and new energy steel materials.

1. Industry Pain Points: Bottlenecks of Traditional Steel Sheet Heating Processes

Traditional steel sheet heating processes can no longer adapt to the high-standard and large-scale production needs of the current steel processing industry, and there are prominent technical bottlenecks in actual production. First of all, the single-coil integral heating mode adopted by traditional induction furnaces is prone to obvious temperature gradients between the edge and center of steel sheets, with large temperature deviation, resulting in inconsistent hardness and mechanical properties of finished steel products and high product defect rate.

Secondly, traditional heating equipment has low thermal efficiency. Gas heating furnaces rely on flame radiation heating, which heats air and refractory materials in a large area, with serious heat loss and thermal efficiency as low as 50%-60%. In addition, the equipment has poor process adaptability, fixed heating parameters, unable to dynamically adjust according to steel sheet thickness, width and material characteristics, and cannot meet the precision heating requirements of special steel sheets such as silicon steel and high-strength alloy steel. Meanwhile, high flue gas emission, large oxidation scale and high manual operation cost have become important factors restricting the upgrading of steel processing enterprises.

2. Core Technological Innovation: Modular Zoned Induction Heating Breakthrough

Focusing on the pain points of uneven heating and low efficiency, Forever Electromechanical has independently developed a multi-zone segmented modular induction heating technology, which completely subverts the traditional single heating mode. The upgraded furnace adopts multi-layer modular induction coil groups with independent power distribution control, which can divide the steel sheet heating area into multiple independent temperature control units according to the steel sheet width, length and thickness dimensions.

Different from the one-size-fits-all heating of traditional equipment, each coil unit of the new furnace can independently adjust the power output. It effectively solves the problem of insufficient edge heating and overheating in the center of the steel sheet, realizing synchronous and uniform heating of the entire plate surface. Equipped with high-precision infrared pyrometers arranged in multiple points, the equipment conducts real-time temperature monitoring in the three dimensions of steel sheet width, length and thickness, forming a closed-loop linkage control with IGBT medium-frequency power supply. The temperature control accuracy is upgraded to±1°C, which ensures extremely consistent heating temperature of the steel sheet and fundamentally improves the uniformity of steel material mechanical properties.

In terms of structural innovation, the optimized coil layout and magnetic field shielding design effectively reduce magnetic leakage loss. The internal direct heating principle of electromagnetic induction is adopted to generate heat inside the steel sheet, without preheating and no invalid heat loss to the surrounding environment. The comprehensive thermal efficiency is increased to 86% and above, which is 32% higher than that of traditional combustion heating equipment.

3. Intelligent System Upgrade: Full-Automatic Closed-Loop Digital Control

Intelligent digitization is the core upgrade direction of Forever Electromechanical's new-generation steel sheet induction heating furnace. The equipment is equipped with an upgraded PLC+DSP dual-core intelligent control system and a 10.4-inch industrial high-definition touch screen, realizing one-click start-up, automatic parameter calling and unmanned continuous production.

The system builds a full-process parameter traceability database, which can store and classify heating parameters of different steel types, thicknesses and processes. It supports one-click calling of mature processes for mass production, avoiding quality fluctuations caused by manual parameter adjustment. In the production process, the system can dynamically match the induction power and heating path according to the real-time feeding speed and steel sheet specifications, automatically correct temperature deviation, and realize adaptive heating of conventional steel plates, special-shaped steel blanks and new energy silicon steel sheets.

In addition, the intelligent monitoring system integrates over-temperature protection, overload protection and abnormal alarm functions. It can automatically stop operation and send out fault prompts in case of equipment abnormality, realizing full-process safe and stable operation, greatly reducing manual intervention and equipment failure rate.

4. Green Energy-Saving Upgrade: Low-Carbon Production and Cost Reduction

Facing the industry's green and low-carbon development trend, Forever Electromechanical's upgraded induction heating furnace has achieved dual breakthroughs in energy saving and emission reduction. Compared with traditional gas heating furnaces, the equipment has zero flue gas and zero pollutant emissions, eliminating Scope 1 direct carbon emissions in the heating link, and the carbon reduction rate exceeds 90%.

In terms of operating cost, the efficient electromagnetic induction heating mode avoids a large amount of heat loss. The power consumption per ton of steel sheet processing is reduced by more than 30%, and no auxiliary fuel and refractory maintenance costs are required. At the same time, the closed heating environment greatly reduces the oxidation scale on the steel sheet surface, improves the surface finish and yield of finished products, and further reduces the production comprehensive cost for enterprises.

The modular integrated design also optimizes the equipment footprint, saves workshop space, and supports seamless docking with front and rear rolling, quenching and tempering production lines, which is convenient for enterprise production line transformation and capacity expansion.

5. Diversified Application Iteration: Adapt to Full-Scene Steel Sheet Heating

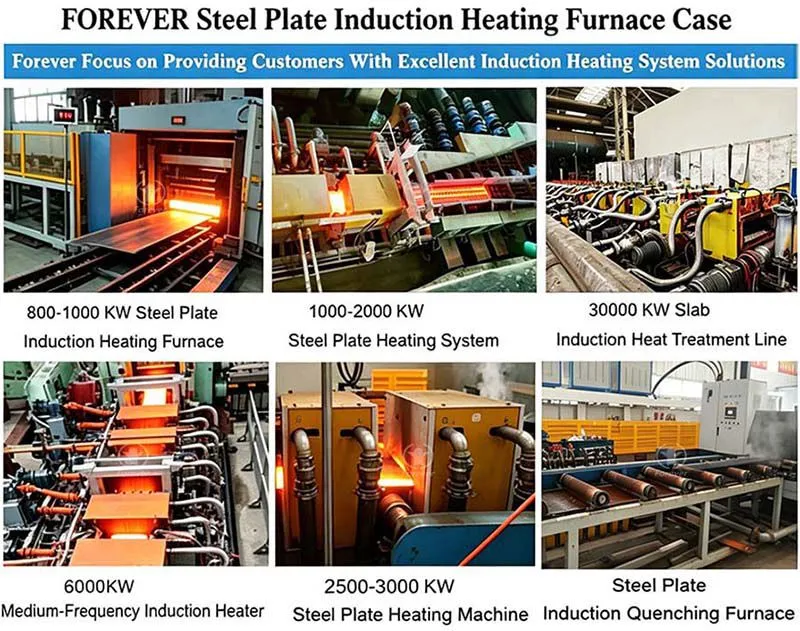

The upgraded Forever Electromechanical steel sheet induction heating furnace has strong process compatibility and scene adaptability. It can cover the heating processing of steel sheets with a thickness of 6mm-200mm and arbitrary width, and is widely applicable to conventional carbon steel, alloy steel, high-strength steel, new energy vehicle silicon steel and special-shaped steel blanks.

Aiming at the precise processing needs of special steel materials, the optimized heating process can realize adjustable hardening depth with a tolerance within 0.1mm, meeting the high-precision heat treatment requirements of high-end equipment manufacturing, new energy materials, engineering machinery and other fields. Whether it is continuous online heating of assembly lines or intermittent precise heating of customized workpieces, the equipment can maintain stable and efficient processing performance, covering the full-scene production needs of rough heating, quenching and tempering, and annealing of steel sheets.

6. Summary: Empower the High-Quality Development of Steel Processing Industry

The process innovation and upgrade of Forever Electromechanical steel sheet induction heating furnace is not only an iterative optimization of single equipment performance, but also a comprehensive upgrade of steel sheet heating technology towards high precision, high efficiency, intelligence and green low carbon. Through modular zoning heating, full-digital closed-loop control and green energy-saving technology breakthroughs, it perfectly solves the multiple pain points of traditional heating processes such as uneven temperature, high energy consumption and low intelligence.

In the future, Forever Electromechanical will continue to focus on the technological research and development of induction heating equipment, continuously optimize process parameters and intelligent systems, provide more efficient, energy-saving and intelligent customized heating solutions for the global steel processing industry, and help enterprises achieve quality improvement, cost reduction and green upgrading.
