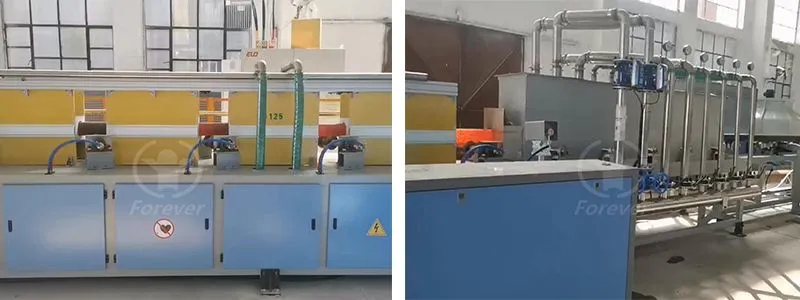

Global metal‑working manufacturers are pursuing stable hardness, low energy consumption and high automation for bar heat‑treatment. Traditional furnace hardening suffers from long heating cycles, heavy oxidation‑decarburization and large hardness deviation. Forever Electromechanical’s export‑oriented bar induction hardening machine is built for overseas workshop environments, adopting modular IGBT induction design, fully complying with international electrical standards, and widely applied for alloy steel bars, piston rods, transmission shafts and high‑strength round bar mass production. This article introduces its standard export‑grade configuration for global buyers.

1. IGBT Medium‑Frequency Induction Power Supply Core

The power unit is the heart of the whole hardening line. Export‑version adopts modular IGBT inverter power supply, electro‑thermal conversion efficiency over 92%. Power range covers 160‑1000 kW with adjustable medium frequency 1‑5 kHz, matching different bar diameters and hardening‑layer depth requirements.

It supports 380‑480V, 50/60Hz international grid voltage adaptation. Built‑in multi‑layer protection: over‑voltage, over‑current, water shortage and over‑temperature alarm. Power factor reaches above 0.95 to reduce overseas factory reactive‑power penalty. Independent power modules allow quick replacement, lowering overseas on‑site maintenance difficulty.

2. Induction Coil & Mechanical Conveying System

Standard export set equips segmented water‑cooled oxygen‑free copper induction coils. Coil structure is simulated via electromagnetic calculation to guarantee uniform circumferential heating for long bars. Quick‑change coil structure enables fast switching for different bar diameters, saving tool‑change time for multi‑specification production.

The rotating roller‑type conveying system is customized for continuous feeding. Wear‑resistant treated support rollers drive bars to rotate while advancing, avoiding local over‑heating and hot‑bending deformation. Conveying speed is stepless adjustable from 0.1‑3 m/min. Feeding speed links with heating power automatically, adapting to carbon steel, alloy structural steel and other raw materials.

3. Closed‑Loop Temperature Monitoring & PLC Control System

To meet strict overseas quality trace‑ability requirements, this bar induction hardening machine is fitted with multi‑zone infrared pyrometers at heating, quenching and tempering sections. Real‑time temperature feedback forms full closed‑loop control, temperature tolerance controlled within ±5℃Hebei Yuan....

International‑brand PLC plus 10‑inch touch‑screen HMI serves as human‑machine terminal. Multiple groups of process parameters can be stored for different steel grades and bar sizes; operators can recall formulas by one‑click. Production data including temperature, speed and power can be recorded and exported for quality archives. Operation interface supports multi‑language switching for local workers.

4. Quenching Spray & Circulating Water Cooling System

Export‑grade segmented annular spray quenching cabinet is adopted. Spray pressure and flow rate are electrically adjustable via PLC, accurately controlling cooling speed to obtain expected hardening‑layer depth. Anti‑blocking nozzle design adapts to quenching medium of water or polymer quenchant. Sealed cabinet structure reduces steam overflow and improves workshop environment.

The whole machine is matched with industrial closed‑loop water cooling unit. Power supply, coils and rollers get stable water‑cooling protection. Water‑flow and water‑temperature sensors trigger interlock protection; equipment stops automatically under abnormal water conditions to avoid component burnout, which is essential for long‑time non‑stop overseas running.

5. Export‑Standard Packaging, Documentation & After‑Sales

Before shipment, Forever Electromechanical implements full‑load continuous running test, temperature calibration and fault simulation test. All components adopt seaworthy fumigation‑free packaging. Complete technical files are delivered: English operation manual, circuit diagram, spare‑parts list and CE‑relevant technical documents.

Global customers get 12‑month quality warranty and lifelong technical service. 24‑hour remote diagnosis, online parameter debugging and overseas engineer dispatch support are available. Spare‑parts supply channel keeps efficient for quick replacement.

For bar manufacturers across different regions, this complete export‑oriented induction hardening configuration balances productivity, product consistency and operation cost. Forever Electromechanical also accepts non‑standard customization according to client’s bar dimension, output and local site conditions to deliver one‑stop heat‑treatment solutions.
