Steel Ball Hot Rolling Heating Production Line | High Efficiency & Stable Forming – Forever Electromechanical

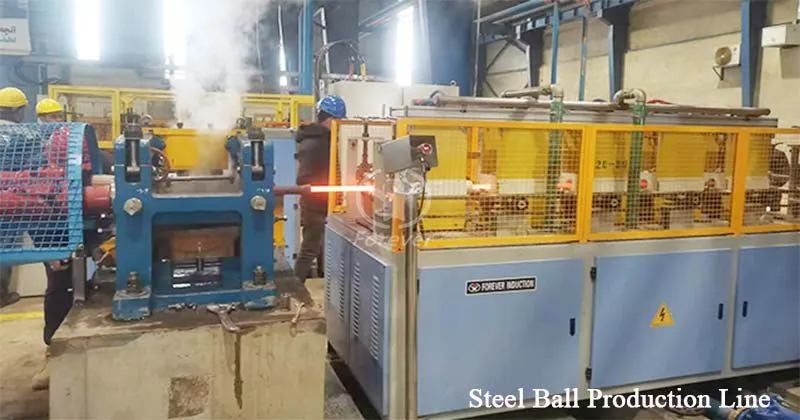

Introduction to Hot Rolling Heating Production Line

Forever Electromechanical’s steel ball hot rolling heating production line is a fully integrated intelligent manufacturing solution designed for mass production of wear-resistant hot-rolled steel balls. Adopting mature IGBT medium-frequency induction heating technology and optimized skew rolling heating process, the production line perfectly solves the common problems of traditional rolling equipment, such as low heating efficiency, uneven temperature and unstable ball forming quality. It supports continuous and automatic production, becoming core processing equipment for mining, cement, and metallurgical steel ball manufacturing industries.

Core Technology: Precise Induction Heating Principle

Different from traditional flame heating and resistance furnaces, this production line relies on high-stability electromagnetic induction heating. The advanced IGBT power system generates a uniform alternating magnetic field, which induces eddy currents inside steel bar blanks. The blanks self-heat rapidly from inside to outside, achieving the optimal rolling temperature of 1050℃ to 1150℃ in a short time. This internal heating method delivers higher thermal efficiency and consistent temperature distribution, completely avoiding surface overheating, decarburization and local cold spots that affect rolling forming.

Equipped with infrared closed-loop temperature monitoring and PLC intelligent control system, the line dynamically adjusts power and feeding speed in real time. It matches exclusive heating curves for steel bars of different specifications and materials, ensuring each blank reaches standardized rolling temperature and laying a solid foundation for stable spherical forming.

Full Automatic Workflow for High Productivity

The entire production line realizes one-stop unmanned operation, covering automatic feeding, intelligent constant-temperature heating, stable rolling forming, online cooling and uniform discharging. After automatic sorting and conveying, steel bar blanks enter the induction heating chamber for precise constant-temperature heating. Qualified hot blanks are immediately sent to the skew rolling unit for continuous plastic deformation and spherical forming. The integrated production process eliminates manual intervention errors and shortens production cycles greatly.

Compared with traditional intermittent production equipment, the continuous rolling heating mode improves comprehensive production efficiency by over 50%. It supports 24-hour stable mass production with fewer operators, effectively reducing labor costs and significantly boosting factory output capacity.

Advantages of Stable Forming & Low Defect Rate

Temperature uniformity is the key to steel ball rolling quality. Forever’s induction heating line ensures minimal internal and external temperature difference of steel blanks, making metal tissue flow more uniform during rolling. The finished steel balls feature high roundness, standard geometric tolerance and dense internal structure, effectively avoiding defective problems such as spherical deformation, cracking and uneven hardness.

With stable heating and rolling parameters, the production line maintains ultra-low crushing rate and excellent impact resistance of finished steel balls. The processed hot-rolled steel balls have balanced hardness, strong wear resistance and long service life, fully meeting the high-standard application requirements of industrial grinding and mineral processing.

Energy Saving & Industrial Upgrade Value

The production line has outstanding energy-saving and eco-friendly performance. The high thermal utilization induction heating mode greatly reduces power consumption compared with traditional equipment. It operates without open flame, low noise and less pollution, complying with global green manufacturing standards. In addition, the equipment features compact structure, stable operation and low maintenance cost, helping steel ball manufacturers achieve efficient production, quality upgrade and cost reduction, and enhance core market competitiveness.
