Introduction

Rising energy costs have become a major challenge for grinding ball manufacturers worldwide. Traditional steel ball production relies on fuel or resistance furnaces, which suffer from heavy heat loss and high power consumption. Forever Electromechanical developed an energy-saving steel ball production line equipped with IGBT induction power supply. This intelligent production system cuts power consumption while maintaining stable heating quality. This blog explores its core design, working process, energy-saving benefits and practical value for steel ball factories.

Why IGBT Induction Power Supply Reduces Energy Waste

The power unit is the core of the whole production line. Unlike outdated SCR power sources, IGBT induction power supply achieves high electrothermal conversion efficiency. It generates alternating magnetic fields to produce eddy current inside steel billets, heating the workpiece itself instead of heating the surrounding air and furnace body. Most heat acts directly on the raw material, greatly reducing heat dissipation loss.

The system supports real-time power adjustment according to billet size and feeding speed. When there is no workpiece, the power automatically drops to idle mode, avoiding unnecessary energy waste. This intelligent power control is the key to the energy-saving performance of Forever Electromechanical’s steel ball production line.

Main Structure of Energy-saving Steel Ball Production Line

Forever Electromechanical integrates the IGBT power system with a full set of steel ball forming and heat treatment stations.

1. Automatic feeding & cutting unit: Continuous and stable bar feeding to avoid idle operation.

2. IGBT induction heating station: Precision heating for steel billets before rolling.

3. Hot skew rolling machine: Form billets into round steel balls in one pass.

4. Online quenching and tempering module: Optimized cooling cycle to stabilize metallographic structure.

5. Infrared temperature monitoring & PLC control system: Closed-loop temperature control.

6. Finished ball sorting system.

Every module is matched to the IGBT power output to keep the whole line running efficiently without energy waste.

Production Workflow

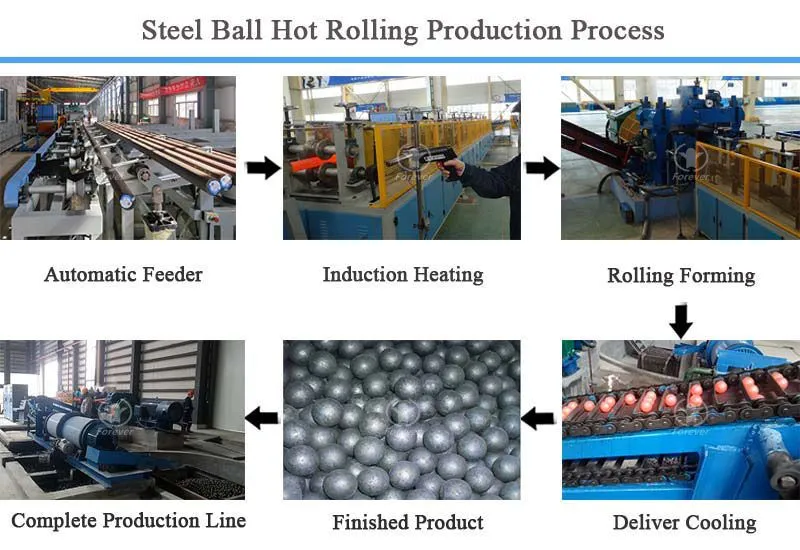

Steel bars are fed automatically and cut into fixed-length billets. The billets move into the induction coil heated by the IGBT power supply, reaching the target rolling temperature rapidly and evenly. Then hot rolling forms the billets into grinding balls. Immediately after forming, steel balls go through quenching to lock surface hardness, followed by tempering to release internal stress.

The temperature sensor feeds real-time data back to the PLC controller. The IGBT unit adjusts power dynamically to keep consistent heating temperature for every billet. The finished steel balls are inspected and sorted for packaging. The whole process runs continuously with low energy consumption.

Core Advantages of IGBT Induction Steel Ball Line

First, outstanding energy saving. Compared with conventional furnace heating, the IGBT induction line reduces power consumption by over 30%, lowering long-term production costs. Second, stable product quality. Uniform internal and external heating reduces oxidation scales and avoids uneven hardness. Third, compact footprint and easy operation. The whole line needs fewer operators. Fourth, low maintenance. IGBT power units have a long service life and stable continuous running performance.

The production process is clean, with no smoke or heavy pollution, meeting environmental standards in many countries. Manufacturers can upgrade their old production lines with this IGBT induction system easily.

Application Scenarios

This energy-saving steel ball production line is designed for manufacturing wear-resistant grinding balls used in mining, cement, thermal power and metallurgy. It supports different sizes of steel balls according to customer requirements. Many steel ball producers choose Forever Electromechanical’s IGBT induction line to reduce electricity bills and improve product competitiveness.

Conclusion

Energy saving is no longer an optional upgrade but a necessary strategy for metal processing factories. Forever Electromechanical’s steel ball production line with IGBT induction power supply combines low energy consumption, high automation and stable heat treatment quality. It helps grinding ball manufacturers control operating costs while producing qualified wear-resistant steel balls. Forever Electromechanical keeps optimizing induction power technology and provides customized turnkey solutions for global metal processing clients.
